InfluxDB¶
Why InfluxDB?¶
Proxmox only supports Graphite and InfluxDB as external metric servers.

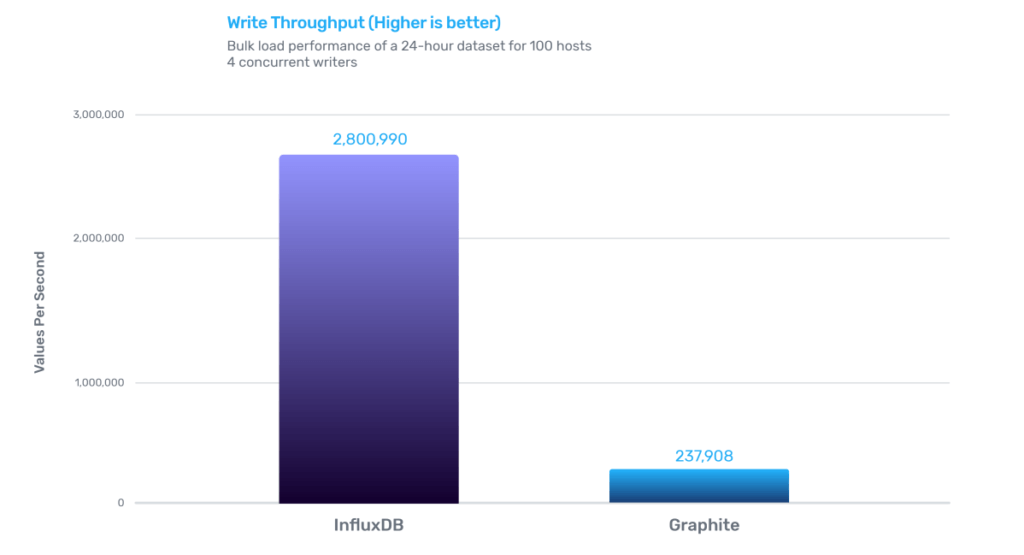

I looked up which one was better and had more performance and InfluxDB wrecked Graphite in every aspect, so it was the winner.
InfluxDB is an open source, big data and NoSQL [1] database that allows for massive scalability, high availability, fast write, and fast read.
InfluxDB is based in the line protocol format which represents one data point in InfluxDB.
It informs InfluxDB of the point’s measurement, tag set, field set, and timestamp.
| Element | Optional/Required | Description | Type |
|---|---|---|---|
| Measurement | Required | The measurement name. Only one per point | String |
| Tag Set | Optional | Tag key-value pairs for the point | Strings |
| Field Set | Required | Field key-value pairs for the point | Float, integer, string or Boolean |
| Timestamp | Optional | Timestamp for the data point | Unix nanosecond timestamp [2] |
It’s important to know that the tags are indexed unlike the fields, so that makes them faster for querying.
Deployment¶
I created a CentOS 8 container along with its users and sudo settings that I’m not going to reveal for security reasons.
To install InfluxDB I executed the following commands.
yum install wget
wget https://dl.influxdata.com/influxdb/releases/influxdb-1.7.10.x86_64.rpm
yum localinstall influxdb-1.7.10.x86_64.rpm
influxd
influx
The influx daemon influxd will output all the database traffic and queries so the best is running it in a separate terminal from influx, which is the InfluxDB shell.
Database Design¶
> show databases
name: databases
name
----
_internal
proxmox
telegraf
>
Proxmox¶
Series¶
> show series
ballooninfo,host=Documentation,nodename=MasterServer,object=qemu,vmid=114
ballooninfo,host=Kali-Linux,nodename=MasterServer,object=qemu,vmid=108
ballooninfo,host=Kali-Linux,nodename=masterserver,object=qemu,vmid=100
ballooninfo,host=Tomcat-Ubuntu,nodename=MasterServer,object=qemu,vmid=109
ballooninfo,host=Windows-LTSC-Security-Testing,nodename=MasterServer,object=qemu,vmid=109
ballooninfo,host=mirror-benchmark,nodename=masterserver,object=qemu,vmid=100
ballooninfo,host=zraid-benchmark,nodename=masterserver,object=qemu,vmid=101
blockstat,host=Documentation,instance=efidisk0,nodename=MasterServer,object=qemu,vmid=114
blockstat,host=Documentation,instance=pflash0,nodename=MasterServer,object=qemu,vmid=114
blockstat,host=Documentation,instance=scsi0,nodename=MasterServer,object=qemu,vmid=114
blockstat,host=Kali-Linux,instance=ide2,nodename=MasterServer,object=qemu,vmid=108
blockstat,host=Kali-Linux,instance=ide2,nodename=masterserver,object=qemu,vmid=100
blockstat,host=Kali-Linux,instance=scsi0,nodename=MasterServer,object=qemu,vmid=108
blockstat,host=Kali-Linux,instance=scsi0,nodename=masterserver,object=qemu,vmid=100
blockstat,host=MasterServer,object=nodes
blockstat,host=Tomcat-Ubuntu,instance=efidisk0,nodename=MasterServer,object=qemu,vmid=109
blockstat,host=Tomcat-Ubuntu,instance=ide2,nodename=MasterServer,object=qemu,vmid=109
blockstat,host=Tomcat-Ubuntu,instance=pflash0,nodename=MasterServer,object=qemu,vmid=109
blockstat,host=Tomcat-Ubuntu,instance=scsi0,nodename=MasterServer,object=qemu,vmid=109
blockstat,host=Windows-LTSC-Security-Testing,instance=efidisk0,nodename=MasterServer,object=qemu,vmid=109
blockstat,host=Windows-LTSC-Security-Testing,instance=ide0,nodename=MasterServer,object=qemu,vmid=109
blockstat,host=Windows-LTSC-Security-Testing,instance=ide2,nodename=MasterServer,object=qemu,vmid=109
blockstat,host=Windows-LTSC-Security-Testing,instance=pflash0,nodename=MasterServer,object=qemu,vmid=109
blockstat,host=masterserver,object=nodes
blockstat,host=mirror-benchmark,instance=efidisk0,nodename=masterserver,object=qemu,vmid=100
blockstat,host=mirror-benchmark,instance=ide0,nodename=masterserver,object=qemu,vmid=100
blockstat,host=mirror-benchmark,instance=ide2,nodename=masterserver,object=qemu,vmid=100
blockstat,host=mirror-benchmark,instance=pflash0,nodename=masterserver,object=qemu,vmid=100
blockstat,host=mirror-benchmark,instance=scsi0,nodename=masterserver,object=qemu,vmid=100
blockstat,host=zraid-benchmark,instance=ide0,nodename=masterserver,object=qemu,vmid=101
blockstat,host=zraid-benchmark,instance=scsi0,nodename=masterserver,object=qemu,vmid=101
cpustat,host=MasterServer,object=nodes
cpustat,host=masterserver,object=nodes
memory,host=MasterServer,object=nodes
memory,host=masterserver,object=nodes
nics,host=Documentation,instance=tap114i0,nodename=MasterServer,object=qemu,vmid=114
nics,host=Kali-Linux,instance=tap100i0,nodename=masterserver,object=qemu,vmid=100
nics,host=Kali-Linux,instance=tap108i0,nodename=MasterServer,object=qemu,vmid=108
nics,host=MasterServer,instance=enp11s0,object=nodes
nics,host=MasterServer,instance=ens4f0,object=nodes
nics,host=MasterServer,instance=ens4f1,object=nodes
nics,host=MasterServer,instance=ens5f0,object=nodes
nics,host=MasterServer,instance=ens5f1,object=nodes
nics,host=MasterServer,instance=fwbr100i0,object=nodes
nics,host=MasterServer,instance=fwbr101i0,object=nodes
nics,host=MasterServer,instance=fwbr102i0,object=nodes
nics,host=MasterServer,instance=fwbr103i0,object=nodes
nics,host=MasterServer,instance=fwbr105i0,object=nodes
nics,host=MasterServer,instance=fwbr108i0,object=nodes
nics,host=MasterServer,instance=fwbr109i0,object=nodes
nics,host=MasterServer,instance=fwbr110i0,object=nodes
nics,host=MasterServer,instance=fwbr111i0,object=nodes
nics,host=MasterServer,instance=fwbr112i0,object=nodes
nics,host=MasterServer,instance=fwbr114i0,object=nodes
nics,host=MasterServer,instance=fwln100i0,object=nodes
nics,host=MasterServer,instance=fwln101i0,object=nodes
nics,host=MasterServer,instance=fwln102i0,object=nodes
nics,host=MasterServer,instance=fwln103i0,object=nodes
nics,host=MasterServer,instance=fwln105i0,object=nodes
nics,host=MasterServer,instance=fwln108i0,object=nodes
nics,host=MasterServer,instance=fwln109i0,object=nodes
nics,host=MasterServer,instance=fwln110i0,object=nodes
nics,host=MasterServer,instance=fwln111i0,object=nodes
nics,host=MasterServer,instance=fwln112i0,object=nodes
nics,host=MasterServer,instance=fwln114i0,object=nodes
nics,host=MasterServer,instance=fwpr100p0,object=nodes
nics,host=MasterServer,instance=fwpr101p0,object=nodes
nics,host=MasterServer,instance=fwpr102p0,object=nodes
nics,host=MasterServer,instance=fwpr103p0,object=nodes
nics,host=MasterServer,instance=fwpr105p0,object=nodes
nics,host=MasterServer,instance=fwpr108p0,object=nodes
nics,host=MasterServer,instance=fwpr109p0,object=nodes
nics,host=MasterServer,instance=fwpr110p0,object=nodes
nics,host=MasterServer,instance=fwpr111p0,object=nodes
nics,host=MasterServer,instance=fwpr112p0,object=nodes
nics,host=MasterServer,instance=fwpr114p0,object=nodes
nics,host=MasterServer,instance=lo,object=nodes
nics,host=MasterServer,instance=tap108i0,object=nodes
nics,host=MasterServer,instance=tap109i0,object=nodes
nics,host=MasterServer,instance=tap114i0,object=nodes
nics,host=MasterServer,instance=veth100i0,object=nodes
nics,host=MasterServer,instance=veth101i0,object=nodes
nics,host=MasterServer,instance=veth102i0,object=nodes
nics,host=MasterServer,instance=veth103i0,object=nodes
nics,host=MasterServer,instance=veth105i0,object=nodes
nics,host=MasterServer,instance=veth110i0,object=nodes
nics,host=MasterServer,instance=veth111i0,object=nodes
nics,host=MasterServer,instance=veth112i0,object=nodes
nics,host=MasterServer,instance=vethSH31C3,object=nodes
nics,host=MasterServer,instance=vmbr0,object=nodes
nics,host=Tomcat-Ubuntu,instance=tap109i0,nodename=MasterServer,object=qemu,vmid=109
nics,host=Windows-LTSC-Security-Testing,instance=tap109i0,nodename=MasterServer,object=qemu,vmid=109
nics,host=masterserver,instance=enp11s0,object=nodes
nics,host=masterserver,instance=ens4f0,object=nodes
nics,host=masterserver,instance=ens4f1,object=nodes
nics,host=masterserver,instance=ens5f0,object=nodes
nics,host=masterserver,instance=ens5f1,object=nodes
nics,host=masterserver,instance=fwbr100i0,object=nodes
nics,host=masterserver,instance=fwbr101i0,object=nodes
nics,host=masterserver,instance=fwbr102i0,object=nodes
nics,host=masterserver,instance=fwbr103i0,object=nodes
nics,host=masterserver,instance=fwbr104i0,object=nodes
nics,host=masterserver,instance=fwbr105i0,object=nodes
nics,host=masterserver,instance=fwbr106i0,object=nodes
nics,host=masterserver,instance=fwbr107i0,object=nodes
nics,host=masterserver,instance=fwln100i0,object=nodes
nics,host=masterserver,instance=fwln101i0,object=nodes
nics,host=masterserver,instance=fwln102i0,object=nodes
nics,host=masterserver,instance=fwln103i0,object=nodes
nics,host=masterserver,instance=fwln104i0,object=nodes
nics,host=masterserver,instance=fwln105i0,object=nodes
nics,host=masterserver,instance=fwln106i0,object=nodes
nics,host=masterserver,instance=fwln107i0,object=nodes
nics,host=masterserver,instance=fwpr100p0,object=nodes
nics,host=masterserver,instance=fwpr101p0,object=nodes
nics,host=masterserver,instance=fwpr102p0,object=nodes
nics,host=masterserver,instance=fwpr103p0,object=nodes
nics,host=masterserver,instance=fwpr104p0,object=nodes
nics,host=masterserver,instance=fwpr105p0,object=nodes
nics,host=masterserver,instance=fwpr106p0,object=nodes
nics,host=masterserver,instance=fwpr107p0,object=nodes
nics,host=masterserver,instance=lo,object=nodes
nics,host=masterserver,instance=tap100i0,object=nodes
nics,host=masterserver,instance=tap101i0,object=nodes
nics,host=masterserver,instance=veth101i0,object=nodes
nics,host=masterserver,instance=veth102i0,object=nodes
nics,host=masterserver,instance=veth103i0,object=nodes
nics,host=masterserver,instance=veth104i0,object=nodes
nics,host=masterserver,instance=veth105i0,object=nodes
nics,host=masterserver,instance=veth106i0,object=nodes
nics,host=masterserver,instance=veth107i0,object=nodes
nics,host=masterserver,instance=veth8B6VYV,object=nodes
nics,host=masterserver,instance=vmbr0,object=nodes
nics,host=mirror-benchmark,instance=tap100i0,nodename=masterserver,object=qemu,vmid=100
nics,host=zraid-benchmark,instance=tap101i0,nodename=masterserver,object=qemu,vmid=101
sensors,chip=coretemp-isa-0000,feature=core_0,host=MasterServer
sensors,chip=coretemp-isa-0000,feature=core_0,host=masterserver
sensors,chip=coretemp-isa-0000,feature=core_1,host=MasterServer
sensors,chip=coretemp-isa-0000,feature=core_1,host=masterserver
sensors,chip=coretemp-isa-0000,feature=core_2,host=MasterServer
sensors,chip=coretemp-isa-0000,feature=core_2,host=masterserver
sensors,chip=coretemp-isa-0000,feature=core_3,host=MasterServer
sensors,chip=coretemp-isa-0000,feature=core_3,host=masterserver
sensors,chip=coretemp-isa-0001,feature=core_0,host=MasterServer
sensors,chip=coretemp-isa-0001,feature=core_0,host=masterserver
sensors,chip=coretemp-isa-0001,feature=core_1,host=MasterServer
sensors,chip=coretemp-isa-0001,feature=core_1,host=masterserver
sensors,chip=coretemp-isa-0001,feature=core_2,host=MasterServer
sensors,chip=coretemp-isa-0001,feature=core_2,host=masterserver
sensors,chip=coretemp-isa-0001,feature=core_3,host=MasterServer
sensors,chip=coretemp-isa-0001,feature=core_3,host=masterserver
sensors,chip=i5k_amb-isa-0000,feature=ch._0_dimm_0,host=MasterServer
sensors,chip=i5k_amb-isa-0000,feature=ch._0_dimm_0,host=masterserver
sensors,chip=i5k_amb-isa-0000,feature=ch._0_dimm_1,host=MasterServer
sensors,chip=i5k_amb-isa-0000,feature=ch._0_dimm_1,host=masterserver
sensors,chip=i5k_amb-isa-0000,feature=ch._0_dimm_2,host=MasterServer
sensors,chip=i5k_amb-isa-0000,feature=ch._0_dimm_2,host=masterserver
sensors,chip=i5k_amb-isa-0000,feature=ch._1_dimm_0,host=MasterServer
sensors,chip=i5k_amb-isa-0000,feature=ch._1_dimm_0,host=masterserver
sensors,chip=i5k_amb-isa-0000,feature=ch._1_dimm_1,host=MasterServer
sensors,chip=i5k_amb-isa-0000,feature=ch._1_dimm_1,host=masterserver
sensors,chip=i5k_amb-isa-0000,feature=ch._1_dimm_2,host=MasterServer
sensors,chip=i5k_amb-isa-0000,feature=ch._1_dimm_2,host=masterserver
sensors,chip=nouveau-pci-0700,feature=fan1,host=MasterServer
sensors,chip=nouveau-pci-0700,feature=gpu_core,host=MasterServer
sensors,chip=nouveau-pci-0700,feature=temp1,host=MasterServer
sensors,chip=smsc47m1-isa-0800,feature=fan1,host=masterserver
sensors,chip=smsc47m1-isa-0800,feature=fan2,host=masterserver
smart_attribute,capacity=120034123776,device=sda,enabled=Enabled,fail=-,flags=-O---K,host=MasterServer,id=181,model=P3-120,name=Program_Fail_Cnt_Total,serial_no=979101524764,wwn=2020202020202020
smart_attribute,capacity=120034123776,device=sda,enabled=Enabled,fail=-,flags=-O---K,host=MasterServer,id=194,model=P3-120,name=Temperature_Celsius,serial_no=979101524764,wwn=2020202020202020
smart_attribute,capacity=120034123776,device=sda,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=12,model=P3-120,name=Power_Cycle_Count,serial_no=979101524764,wwn=2020202020202020
smart_attribute,capacity=120034123776,device=sda,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=161,model=P3-120,name=Unknown_Attribute,serial_no=979101524764,wwn=2020202020202020
smart_attribute,capacity=120034123776,device=sda,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=162,model=P3-120,name=Unknown_Attribute,serial_no=979101524764,wwn=2020202020202020
smart_attribute,capacity=120034123776,device=sda,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=163,model=P3-120,name=Unknown_Attribute,serial_no=979101524764,wwn=2020202020202020
smart_attribute,capacity=120034123776,device=sda,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=164,model=P3-120,name=Unknown_Attribute,serial_no=979101524764,wwn=2020202020202020
smart_attribute,capacity=120034123776,device=sda,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=166,model=P3-120,name=Unknown_Attribute,serial_no=979101524764,wwn=2020202020202020
smart_attribute,capacity=120034123776,device=sda,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=167,model=P3-120,name=Unknown_Attribute,serial_no=979101524764,wwn=2020202020202020
smart_attribute,capacity=120034123776,device=sda,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=168,model=P3-120,name=Unknown_Attribute,serial_no=979101524764,wwn=2020202020202020
smart_attribute,capacity=120034123776,device=sda,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=169,model=P3-120,name=Unknown_Attribute,serial_no=979101524764,wwn=2020202020202020
smart_attribute,capacity=120034123776,device=sda,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=171,model=P3-120,name=Unknown_Attribute,serial_no=979101524764,wwn=2020202020202020
smart_attribute,capacity=120034123776,device=sda,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=172,model=P3-120,name=Unknown_Attribute,serial_no=979101524764,wwn=2020202020202020
smart_attribute,capacity=120034123776,device=sda,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=174,model=P3-120,name=Unknown_Attribute,serial_no=979101524764,wwn=2020202020202020
smart_attribute,capacity=120034123776,device=sda,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=175,model=P3-120,name=Program_Fail_Count_Chip,serial_no=979101524764,wwn=2020202020202020
smart_attribute,capacity=120034123776,device=sda,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=187,model=P3-120,name=Reported_Uncorrect,serial_no=979101524764,wwn=2020202020202020
smart_attribute,capacity=120034123776,device=sda,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=196,model=P3-120,name=Reallocated_Event_Count,serial_no=979101524764,wwn=2020202020202020
smart_attribute,capacity=120034123776,device=sda,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=199,model=P3-120,name=UDMA_CRC_Error_Count,serial_no=979101524764,wwn=2020202020202020
smart_attribute,capacity=120034123776,device=sda,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=206,model=P3-120,name=Unknown_SSD_Attribute,serial_no=979101524764,wwn=2020202020202020
smart_attribute,capacity=120034123776,device=sda,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=207,model=P3-120,name=Unknown_SSD_Attribute,serial_no=979101524764,wwn=2020202020202020
smart_attribute,capacity=120034123776,device=sda,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=232,model=P3-120,name=Available_Reservd_Space,serial_no=979101524764,wwn=2020202020202020
smart_attribute,capacity=120034123776,device=sda,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=241,model=P3-120,name=Total_LBAs_Written,serial_no=979101524764,wwn=2020202020202020
smart_attribute,capacity=120034123776,device=sda,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=242,model=P3-120,name=Total_LBAs_Read,serial_no=979101524764,wwn=2020202020202020
smart_attribute,capacity=120034123776,device=sda,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=249,model=P3-120,name=Unknown_Attribute,serial_no=979101524764,wwn=2020202020202020
smart_attribute,capacity=120034123776,device=sda,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=250,model=P3-120,name=Read_Error_Retry_Rate,serial_no=979101524764,wwn=2020202020202020
smart_attribute,capacity=120034123776,device=sda,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=9,model=P3-120,name=Power_On_Hours,serial_no=979101524764,wwn=2020202020202020
smart_attribute,capacity=120034123776,device=sda,enabled=Enabled,fail=-,flags=-O-RCK,host=MasterServer,id=195,model=P3-120,name=Hardware_ECC_Recovered,serial_no=979101524764,wwn=2020202020202020
smart_attribute,capacity=120034123776,device=sda,enabled=Enabled,fail=-,flags=PO--CK,host=MasterServer,id=5,model=P3-120,name=Reallocated_Sector_Ct,serial_no=979101524764,wwn=2020202020202020
smart_attribute,capacity=120034123776,device=sda,enabled=Enabled,fail=-,flags=POSR-K,host=MasterServer,id=1,model=P3-120,name=Raw_Read_Error_Rate,serial_no=979101524764,wwn=2020202020202020
smart_attribute,capacity=128035676160,device=sdb,enabled=Enabled,fail=-,flags=----CK,host=MasterServer,id=241,model=kingSSD-S100128,name=Total_LBAs_Written,serial_no=AA00000221
smart_attribute,capacity=128035676160,device=sdb,enabled=Enabled,fail=-,flags=----CK,host=MasterServer,id=242,model=kingSSD-S100128,name=Total_LBAs_Read,serial_no=AA00000221
smart_attribute,capacity=128035676160,device=sdb,enabled=Enabled,fail=-,flags=-O---K,host=MasterServer,id=194,model=kingSSD-S100128,name=Temperature_Celsius,serial_no=AA00000221
smart_attribute,capacity=128035676160,device=sdb,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=1,model=kingSSD-S100128,name=Raw_Read_Error_Rate,serial_no=AA00000221
smart_attribute,capacity=128035676160,device=sdb,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=12,model=kingSSD-S100128,name=Power_Cycle_Count,serial_no=AA00000221
smart_attribute,capacity=128035676160,device=sdb,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=160,model=kingSSD-S100128,name=Unknown_Attribute,serial_no=AA00000221
smart_attribute,capacity=128035676160,device=sdb,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=163,model=kingSSD-S100128,name=Unknown_Attribute,serial_no=AA00000221
smart_attribute,capacity=128035676160,device=sdb,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=164,model=kingSSD-S100128,name=Unknown_Attribute,serial_no=AA00000221
smart_attribute,capacity=128035676160,device=sdb,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=165,model=kingSSD-S100128,name=Unknown_Attribute,serial_no=AA00000221
smart_attribute,capacity=128035676160,device=sdb,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=166,model=kingSSD-S100128,name=Unknown_Attribute,serial_no=AA00000221
smart_attribute,capacity=128035676160,device=sdb,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=167,model=kingSSD-S100128,name=Unknown_Attribute,serial_no=AA00000221
smart_attribute,capacity=128035676160,device=sdb,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=168,model=kingSSD-S100128,name=Unknown_Attribute,serial_no=AA00000221
smart_attribute,capacity=128035676160,device=sdb,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=169,model=kingSSD-S100128,name=Unknown_Attribute,serial_no=AA00000221
smart_attribute,capacity=128035676160,device=sdb,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=175,model=kingSSD-S100128,name=Program_Fail_Count_Chip,serial_no=AA00000221
smart_attribute,capacity=128035676160,device=sdb,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=176,model=kingSSD-S100128,name=Erase_Fail_Count_Chip,serial_no=AA00000221
smart_attribute,capacity=128035676160,device=sdb,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=177,model=kingSSD-S100128,name=Wear_Leveling_Count,serial_no=AA00000221
smart_attribute,capacity=128035676160,device=sdb,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=178,model=kingSSD-S100128,name=Used_Rsvd_Blk_Cnt_Chip,serial_no=AA00000221
smart_attribute,capacity=128035676160,device=sdb,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=181,model=kingSSD-S100128,name=Program_Fail_Cnt_Total,serial_no=AA00000221
smart_attribute,capacity=128035676160,device=sdb,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=182,model=kingSSD-S100128,name=Erase_Fail_Count_Total,serial_no=AA00000221
smart_attribute,capacity=128035676160,device=sdb,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=192,model=kingSSD-S100128,name=Power-Off_Retract_Count,serial_no=AA00000221
smart_attribute,capacity=128035676160,device=sdb,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=195,model=kingSSD-S100128,name=Hardware_ECC_Recovered,serial_no=AA00000221
smart_attribute,capacity=128035676160,device=sdb,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=196,model=kingSSD-S100128,name=Reallocated_Event_Count,serial_no=AA00000221
smart_attribute,capacity=128035676160,device=sdb,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=197,model=kingSSD-S100128,name=Current_Pending_Sector,serial_no=AA00000221
smart_attribute,capacity=128035676160,device=sdb,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=198,model=kingSSD-S100128,name=Offline_Uncorrectable,serial_no=AA00000221
smart_attribute,capacity=128035676160,device=sdb,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=199,model=kingSSD-S100128,name=UDMA_CRC_Error_Count,serial_no=AA00000221
smart_attribute,capacity=128035676160,device=sdb,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=232,model=kingSSD-S100128,name=Available_Reservd_Space,serial_no=AA00000221
smart_attribute,capacity=128035676160,device=sdb,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=245,model=kingSSD-S100128,name=Unknown_Attribute,serial_no=AA00000221
smart_attribute,capacity=128035676160,device=sdb,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=5,model=kingSSD-S100128,name=Reallocated_Sector_Ct,serial_no=AA00000221
smart_attribute,capacity=128035676160,device=sdb,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=9,model=kingSSD-S100128,name=Power_On_Hours,serial_no=AA00000221
smart_attribute,capacity=128035676160,device=sdb,enabled=Enabled,fail=-,flags=PO--CK,host=MasterServer,id=161,model=kingSSD-S100128,name=Unknown_Attribute,serial_no=AA00000221
smart_attribute,capacity=2000398934016,device=sdc,enabled=Enabled,fail=-,flags=---R--,host=MasterServer,id=198,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Offline_Uncorrectable,serial_no=JK11B1BFHYG71F,wwn=5000cca229db7bac
smart_attribute,capacity=2000398934016,device=sdc,enabled=Enabled,fail=-,flags=-O----,host=MasterServer,id=194,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Temperature_Celsius,serial_no=JK11B1BFHYG71F,wwn=5000cca229db7bac
smart_attribute,capacity=2000398934016,device=sdc,enabled=Enabled,fail=-,flags=-O----,host=MasterServer,id=220,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Disk_Shift,serial_no=JK11B1BFHYG71F,wwn=5000cca229db7bac
smart_attribute,capacity=2000398934016,device=sdc,enabled=Enabled,fail=-,flags=-O---K,host=MasterServer,id=197,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Current_Pending_Sector,serial_no=JK11B1BFHYG71F,wwn=5000cca229db7bac
smart_attribute,capacity=2000398934016,device=sdc,enabled=Enabled,fail=-,flags=-O--C-,host=MasterServer,id=193,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Load_Cycle_Count,serial_no=JK11B1BFHYG71F,wwn=5000cca229db7bac
smart_attribute,capacity=2000398934016,device=sdc,enabled=Enabled,fail=-,flags=-O--C-,host=MasterServer,id=4,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Start_Stop_Count,serial_no=JK11B1BFHYG71F,wwn=5000cca229db7bac
smart_attribute,capacity=2000398934016,device=sdc,enabled=Enabled,fail=-,flags=-O--C-,host=MasterServer,id=9,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Power_On_Hours,serial_no=JK11B1BFHYG71F,wwn=5000cca229db7bac
smart_attribute,capacity=2000398934016,device=sdc,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=12,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Power_Cycle_Count,serial_no=JK11B1BFHYG71F,wwn=5000cca229db7bac
smart_attribute,capacity=2000398934016,device=sdc,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=187,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Reported_Uncorrect,serial_no=JK11B1BFHYG71F,wwn=5000cca229db7bac
smart_attribute,capacity=2000398934016,device=sdc,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=192,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Power-Off_Retract_Count,serial_no=JK11B1BFHYG71F,wwn=5000cca229db7bac
smart_attribute,capacity=2000398934016,device=sdc,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=196,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Reallocated_Event_Count,serial_no=JK11B1BFHYG71F,wwn=5000cca229db7bac
smart_attribute,capacity=2000398934016,device=sdc,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=200,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Multi_Zone_Error_Rate,serial_no=JK11B1BFHYG71F,wwn=5000cca229db7bac
smart_attribute,capacity=2000398934016,device=sdc,enabled=Enabled,fail=-,flags=-O-R--,host=MasterServer,id=199,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=UDMA_CRC_Error_Count,serial_no=JK11B1BFHYG71F,wwn=5000cca229db7bac
smart_attribute,capacity=2000398934016,device=sdc,enabled=Enabled,fail=-,flags=-O-R--,host=MasterServer,id=201,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Soft_Read_Error_Rate,serial_no=JK11B1BFHYG71F,wwn=5000cca229db7bac
smart_attribute,capacity=2000398934016,device=sdc,enabled=Enabled,fail=-,flags=-O-R--,host=MasterServer,id=202,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Data_Address_Mark_Errs,serial_no=JK11B1BFHYG71F,wwn=5000cca229db7bac
smart_attribute,capacity=2000398934016,device=sdc,enabled=Enabled,fail=-,flags=P-S---,host=MasterServer,id=2,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Throughput_Performance,serial_no=JK11B1BFHYG71F,wwn=5000cca229db7bac
smart_attribute,capacity=2000398934016,device=sdc,enabled=Enabled,fail=-,flags=P-S---,host=MasterServer,id=8,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Seek_Time_Performance,serial_no=JK11B1BFHYG71F,wwn=5000cca229db7bac
smart_attribute,capacity=2000398934016,device=sdc,enabled=Enabled,fail=-,flags=PO--C-,host=MasterServer,id=10,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Spin_Retry_Count,serial_no=JK11B1BFHYG71F,wwn=5000cca229db7bac
smart_attribute,capacity=2000398934016,device=sdc,enabled=Enabled,fail=-,flags=PO--CK,host=MasterServer,id=5,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Reallocated_Sector_Ct,serial_no=JK11B1BFHYG71F,wwn=5000cca229db7bac
smart_attribute,capacity=2000398934016,device=sdc,enabled=Enabled,fail=-,flags=PO-R--,host=MasterServer,id=1,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Raw_Read_Error_Rate,serial_no=JK11B1BFHYG71F,wwn=5000cca229db7bac
smart_attribute,capacity=2000398934016,device=sdc,enabled=Enabled,fail=-,flags=PO-R--,host=MasterServer,id=7,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Seek_Error_Rate,serial_no=JK11B1BFHYG71F,wwn=5000cca229db7bac
smart_attribute,capacity=2000398934016,device=sdc,enabled=Enabled,fail=-,flags=POS---,host=MasterServer,id=3,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Spin_Up_Time,serial_no=JK11B1BFHYG71F,wwn=5000cca229db7bac
smart_attribute,capacity=2000398934016,device=sdd,enabled=Enabled,fail=-,flags=---R--,host=MasterServer,id=198,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Offline_Uncorrectable,serial_no=JK11B1BFHYM4YF,wwn=5000cca229db8e30
smart_attribute,capacity=2000398934016,device=sdd,enabled=Enabled,fail=-,flags=-O----,host=MasterServer,id=194,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Temperature_Celsius,serial_no=JK11B1BFHYM4YF,wwn=5000cca229db8e30
smart_attribute,capacity=2000398934016,device=sdd,enabled=Enabled,fail=-,flags=-O----,host=MasterServer,id=220,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Disk_Shift,serial_no=JK11B1BFHYM4YF,wwn=5000cca229db8e30
smart_attribute,capacity=2000398934016,device=sdd,enabled=Enabled,fail=-,flags=-O---K,host=MasterServer,id=197,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Current_Pending_Sector,serial_no=JK11B1BFHYM4YF,wwn=5000cca229db8e30
smart_attribute,capacity=2000398934016,device=sdd,enabled=Enabled,fail=-,flags=-O--C-,host=MasterServer,id=193,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Load_Cycle_Count,serial_no=JK11B1BFHYM4YF,wwn=5000cca229db8e30
smart_attribute,capacity=2000398934016,device=sdd,enabled=Enabled,fail=-,flags=-O--C-,host=MasterServer,id=4,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Start_Stop_Count,serial_no=JK11B1BFHYM4YF,wwn=5000cca229db8e30
smart_attribute,capacity=2000398934016,device=sdd,enabled=Enabled,fail=-,flags=-O--C-,host=MasterServer,id=9,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Power_On_Hours,serial_no=JK11B1BFHYM4YF,wwn=5000cca229db8e30
smart_attribute,capacity=2000398934016,device=sdd,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=12,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Power_Cycle_Count,serial_no=JK11B1BFHYM4YF,wwn=5000cca229db8e30
smart_attribute,capacity=2000398934016,device=sdd,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=187,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Reported_Uncorrect,serial_no=JK11B1BFHYM4YF,wwn=5000cca229db8e30
smart_attribute,capacity=2000398934016,device=sdd,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=192,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Power-Off_Retract_Count,serial_no=JK11B1BFHYM4YF,wwn=5000cca229db8e30
smart_attribute,capacity=2000398934016,device=sdd,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=196,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Reallocated_Event_Count,serial_no=JK11B1BFHYM4YF,wwn=5000cca229db8e30
smart_attribute,capacity=2000398934016,device=sdd,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=200,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Multi_Zone_Error_Rate,serial_no=JK11B1BFHYM4YF,wwn=5000cca229db8e30
smart_attribute,capacity=2000398934016,device=sdd,enabled=Enabled,fail=-,flags=-O-R--,host=MasterServer,id=199,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=UDMA_CRC_Error_Count,serial_no=JK11B1BFHYM4YF,wwn=5000cca229db8e30
smart_attribute,capacity=2000398934016,device=sdd,enabled=Enabled,fail=-,flags=-O-R--,host=MasterServer,id=201,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Soft_Read_Error_Rate,serial_no=JK11B1BFHYM4YF,wwn=5000cca229db8e30
smart_attribute,capacity=2000398934016,device=sdd,enabled=Enabled,fail=-,flags=-O-R--,host=MasterServer,id=202,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Data_Address_Mark_Errs,serial_no=JK11B1BFHYM4YF,wwn=5000cca229db8e30
smart_attribute,capacity=2000398934016,device=sdd,enabled=Enabled,fail=-,flags=P-S---,host=MasterServer,id=2,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Throughput_Performance,serial_no=JK11B1BFHYM4YF,wwn=5000cca229db8e30
smart_attribute,capacity=2000398934016,device=sdd,enabled=Enabled,fail=-,flags=P-S---,host=MasterServer,id=8,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Seek_Time_Performance,serial_no=JK11B1BFHYM4YF,wwn=5000cca229db8e30
smart_attribute,capacity=2000398934016,device=sdd,enabled=Enabled,fail=-,flags=PO--C-,host=MasterServer,id=10,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Spin_Retry_Count,serial_no=JK11B1BFHYM4YF,wwn=5000cca229db8e30
smart_attribute,capacity=2000398934016,device=sdd,enabled=Enabled,fail=-,flags=PO--CK,host=MasterServer,id=5,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Reallocated_Sector_Ct,serial_no=JK11B1BFHYM4YF,wwn=5000cca229db8e30
smart_attribute,capacity=2000398934016,device=sdd,enabled=Enabled,fail=-,flags=PO-R--,host=MasterServer,id=1,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Raw_Read_Error_Rate,serial_no=JK11B1BFHYM4YF,wwn=5000cca229db8e30
smart_attribute,capacity=2000398934016,device=sdd,enabled=Enabled,fail=-,flags=PO-R--,host=MasterServer,id=7,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Seek_Error_Rate,serial_no=JK11B1BFHYM4YF,wwn=5000cca229db8e30
smart_attribute,capacity=2000398934016,device=sdd,enabled=Enabled,fail=-,flags=POS---,host=MasterServer,id=3,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Spin_Up_Time,serial_no=JK11B1BFHYM4YF,wwn=5000cca229db8e30
smart_attribute,capacity=2000398934016,device=sde,enabled=Enabled,fail=-,flags=---R--,host=MasterServer,id=198,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Offline_Uncorrectable,serial_no=JK11B1BFHYX0SF,wwn=5000cca229dbaf77
smart_attribute,capacity=2000398934016,device=sde,enabled=Enabled,fail=-,flags=-O----,host=MasterServer,id=194,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Temperature_Celsius,serial_no=JK11B1BFHYX0SF,wwn=5000cca229dbaf77
smart_attribute,capacity=2000398934016,device=sde,enabled=Enabled,fail=-,flags=-O----,host=MasterServer,id=220,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Disk_Shift,serial_no=JK11B1BFHYX0SF,wwn=5000cca229dbaf77
smart_attribute,capacity=2000398934016,device=sde,enabled=Enabled,fail=-,flags=-O---K,host=MasterServer,id=197,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Current_Pending_Sector,serial_no=JK11B1BFHYX0SF,wwn=5000cca229dbaf77
smart_attribute,capacity=2000398934016,device=sde,enabled=Enabled,fail=-,flags=-O--C-,host=MasterServer,id=193,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Load_Cycle_Count,serial_no=JK11B1BFHYX0SF,wwn=5000cca229dbaf77
smart_attribute,capacity=2000398934016,device=sde,enabled=Enabled,fail=-,flags=-O--C-,host=MasterServer,id=4,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Start_Stop_Count,serial_no=JK11B1BFHYX0SF,wwn=5000cca229dbaf77
smart_attribute,capacity=2000398934016,device=sde,enabled=Enabled,fail=-,flags=-O--C-,host=MasterServer,id=9,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Power_On_Hours,serial_no=JK11B1BFHYX0SF,wwn=5000cca229dbaf77
smart_attribute,capacity=2000398934016,device=sde,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=12,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Power_Cycle_Count,serial_no=JK11B1BFHYX0SF,wwn=5000cca229dbaf77
smart_attribute,capacity=2000398934016,device=sde,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=187,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Reported_Uncorrect,serial_no=JK11B1BFHYX0SF,wwn=5000cca229dbaf77
smart_attribute,capacity=2000398934016,device=sde,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=192,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Power-Off_Retract_Count,serial_no=JK11B1BFHYX0SF,wwn=5000cca229dbaf77
smart_attribute,capacity=2000398934016,device=sde,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=196,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Reallocated_Event_Count,serial_no=JK11B1BFHYX0SF,wwn=5000cca229dbaf77
smart_attribute,capacity=2000398934016,device=sde,enabled=Enabled,fail=-,flags=-O--CK,host=MasterServer,id=200,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Multi_Zone_Error_Rate,serial_no=JK11B1BFHYX0SF,wwn=5000cca229dbaf77
smart_attribute,capacity=2000398934016,device=sde,enabled=Enabled,fail=-,flags=-O-R--,host=MasterServer,id=199,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=UDMA_CRC_Error_Count,serial_no=JK11B1BFHYX0SF,wwn=5000cca229dbaf77
smart_attribute,capacity=2000398934016,device=sde,enabled=Enabled,fail=-,flags=-O-R--,host=MasterServer,id=201,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Soft_Read_Error_Rate,serial_no=JK11B1BFHYX0SF,wwn=5000cca229dbaf77
smart_attribute,capacity=2000398934016,device=sde,enabled=Enabled,fail=-,flags=-O-R--,host=MasterServer,id=202,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Data_Address_Mark_Errs,serial_no=JK11B1BFHYX0SF,wwn=5000cca229dbaf77
smart_attribute,capacity=2000398934016,device=sde,enabled=Enabled,fail=-,flags=P-S---,host=MasterServer,id=2,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Throughput_Performance,serial_no=JK11B1BFHYX0SF,wwn=5000cca229dbaf77
smart_attribute,capacity=2000398934016,device=sde,enabled=Enabled,fail=-,flags=P-S---,host=MasterServer,id=8,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Seek_Time_Performance,serial_no=JK11B1BFHYX0SF,wwn=5000cca229dbaf77
smart_attribute,capacity=2000398934016,device=sde,enabled=Enabled,fail=-,flags=PO--C-,host=MasterServer,id=10,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Spin_Retry_Count,serial_no=JK11B1BFHYX0SF,wwn=5000cca229dbaf77
smart_attribute,capacity=2000398934016,device=sde,enabled=Enabled,fail=-,flags=PO--CK,host=MasterServer,id=5,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Reallocated_Sector_Ct,serial_no=JK11B1BFHYX0SF,wwn=5000cca229dbaf77
smart_attribute,capacity=2000398934016,device=sde,enabled=Enabled,fail=-,flags=PO-R--,host=MasterServer,id=1,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Raw_Read_Error_Rate,serial_no=JK11B1BFHYX0SF,wwn=5000cca229dbaf77
smart_attribute,capacity=2000398934016,device=sde,enabled=Enabled,fail=-,flags=PO-R--,host=MasterServer,id=7,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Seek_Error_Rate,serial_no=JK11B1BFHYX0SF,wwn=5000cca229dbaf77
smart_attribute,capacity=2000398934016,device=sde,enabled=Enabled,fail=-,flags=POS---,host=MasterServer,id=3,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,name=Spin_Up_Time,serial_no=JK11B1BFHYX0SF,wwn=5000cca229dbaf77
smart_attribute,device=sda,host=MasterServer,id=194,name=Temperature_Celsius
smart_attribute,device=sdc,host=MasterServer,id=194,name=Temperature_Celsius
smart_device,capacity=120034123776,device=sda,enabled=Enabled,host=MasterServer,model=P3-120,serial_no=979101524764,wwn=2020202020202020
smart_device,capacity=128035676160,device=sdb,enabled=Enabled,host=MasterServer,model=kingSSD-S100128,serial_no=AA00000221
smart_device,capacity=2000398934016,device=sdc,enabled=Enabled,host=MasterServer,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,serial_no=JK11B1BFHYG71F,wwn=5000cca229db7bac
smart_device,capacity=2000398934016,device=sdd,enabled=Enabled,host=MasterServer,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,serial_no=JK11B1BFHYM4YF,wwn=5000cca229db8e30
smart_device,capacity=2000398934016,device=sde,enabled=Enabled,host=MasterServer,model=HUA722020ALA330\ \ \ \ \ \ 59Y5483\ 42C0416IBMV,serial_no=JK11B1BFHYX0SF,wwn=5000cca229dbaf77
smart_device,device=sda,host=MasterServer
smart_device,device=sda,host=masterserver
smart_device,device=sdb,host=MasterServer
smart_device,device=sdb,host=masterserver
smart_device,device=sdc,host=MasterServer
smart_device,device=sdc,host=masterserver
smart_device,device=sdd,host=MasterServer
smart_device,device=sdd,host=masterserver
smart_device,device=sde,host=MasterServer
smart_device,device=sde,host=masterserver
system,host=Backups,nodename=MasterServer,object=storages,type=dir
system,host=CT100,nodename=MasterServer,object=lxc,vmid=100
system,host=CT101,nodename=MasterServer,object=lxc,vmid=101
system,host=CT101,nodename=masterserver,object=lxc,vmid=101
system,host=CT104,nodename=masterserver,object=lxc,vmid=104
system,host=CT105,nodename=MasterServer,object=lxc,vmid=105
system,host=CT105,nodename=masterserver,object=lxc,vmid=105
system,host=CT106,nodename=masterserver,object=lxc,vmid=106
system,host=CT107,nodename=masterserver,object=lxc,vmid=107
system,host=Container-Templates,nodename=MasterServer,object=storages,type=dir
system,host=Containers,nodename=MasterServer,object=storages,type=zfspool
system,host=Debian,nodename=MasterServer,object=lxc,vmid=105
system,host=Documentation,nodename=MasterServer,object=qemu,vmid=114
system,host=Grafana,nodename=MasterServer,object=lxc,vmid=103
system,host=InfluxDB,nodename=MasterServer,object=lxc,vmid=102
system,host=Iso-Images,nodename=MasterServer,object=storages,type=dir
system,host=Jellyfin,nodename=MasterServer,object=lxc,vmid=111
system,host=Kali-Linux,nodename=MasterServer,object=qemu,vmid=108
system,host=Kali-Linux,nodename=masterserver,object=qemu,vmid=100
system,host=MasterServer,object=nodes
system,host=Minecraft-1.15.2,nodename=MasterServer,object=lxc,vmid=107
system,host=Minecraft-1.8.9-Paper,nodename=MasterServer,object=lxc,vmid=104
system,host=Minecraft-Bedrock,nodename=MasterServer,object=lxc,vmid=106
system,host=NextCloud,nodename=MasterServer,object=lxc,vmid=113
system,host=PostgreSQL,nodename=MasterServer,object=lxc,vmid=101
system,host=Samba,nodename=MasterServer,object=lxc,vmid=110
system,host=Tomcat,nodename=MasterServer,object=lxc,vmid=100
system,host=Tomcat,nodename=MasterServer,object=lxc,vmid=101
system,host=Tomcat-Ubuntu,nodename=MasterServer,object=qemu,vmid=109
system,host=Virtual-Machines,nodename=MasterServer,object=storages,type=zfspool
system,host=Windows-LTSC-Security-Testing,nodename=MasterServer,object=qemu,vmid=109
system,host=backups,nodename=masterserver,object=storages,type=dir
system,host=containerdata,nodename=masterserver,object=storages,type=zfspool
system,host=containertemplates,nodename=masterserver,object=storages,type=dir
system,host=fastcontainerdata,nodename=masterserver,object=storages,type=zfspool
system,host=fastvirtualmachinedata,nodename=masterserver,object=storages,type=zfspool
system,host=grafana,nodename=masterserver,object=lxc,vmid=103
system,host=influxdb,nodename=masterserver,object=lxc,vmid=102
system,host=isoimages,nodename=masterserver,object=storages,type=dir
system,host=laravel,nodename=masterserver,object=lxc,vmid=105
system,host=masterserver,object=nodes
system,host=minecraft-1.15.2-paper,nodename=masterserver,object=lxc,vmid=107
system,host=minecraft-1.8.9-paper,nodename=masterserver,object=lxc,vmid=104
system,host=minecraft-bedrock,nodename=masterserver,object=lxc,vmid=106
system,host=mirror-benchmark,nodename=masterserver,object=qemu,vmid=100
system,host=nginx,nodename=MasterServer,object=lxc,vmid=112
system,host=snapshots,nodename=masterserver,object=storages,type=dir
system,host=virtualmachinedata,nodename=masterserver,object=storages,type=zfspool
system,host=zraid-benchmark,nodename=masterserver,object=qemu,vmid=101
temp,host=masterserver,sensor=coretemp_core0_crit
temp,host=masterserver,sensor=coretemp_core0_critalarm
temp,host=masterserver,sensor=coretemp_core0_input
temp,host=masterserver,sensor=coretemp_core0_max
temp,host=masterserver,sensor=coretemp_core1_crit
temp,host=masterserver,sensor=coretemp_core1_critalarm
temp,host=masterserver,sensor=coretemp_core1_input
temp,host=masterserver,sensor=coretemp_core1_max
temp,host=masterserver,sensor=coretemp_core2_crit
temp,host=masterserver,sensor=coretemp_core2_critalarm
temp,host=masterserver,sensor=coretemp_core2_input
temp,host=masterserver,sensor=coretemp_core2_max
temp,host=masterserver,sensor=coretemp_core3_crit
temp,host=masterserver,sensor=coretemp_core3_critalarm
temp,host=masterserver,sensor=coretemp_core3_input
temp,host=masterserver,sensor=coretemp_core3_max
zfs,host=MasterServer,pools=rpool::zpool
zfs_pool,host=MasterServer,pool=rpool
zfs_pool,host=MasterServer,pool=zpool
>
Measurements¶
> show measurements
name: measurements
name
----
ballooninfo
blockstat
cpustat
memory
nics
sensors
smart_attribute
smart_device
system
temp
zfs
zfs_pool
>
Tag Keys¶
> show tag keys
name: ballooninfo
tagKey
------
host
nodename
object
vmid
name: blockstat
tagKey
------
host
instance
nodename
object
vmid
name: cpustat
tagKey
------
host
object
name: memory
tagKey
------
host
object
name: nics
tagKey
------
host
instance
nodename
object
vmid
name: sensors
tagKey
------
chip
feature
host
name: smart_attribute
tagKey
------
capacity
device
enabled
fail
flags
host
id
model
name
serial_no
wwn
name: smart_device
tagKey
------
capacity
device
enabled
host
model
serial_no
wwn
name: system
tagKey
------
host
nodename
object
type
vmid
name: temp
tagKey
------
host
sensor
name: zfs
tagKey
------
host
pools
name: zfs_pool
tagKey
------
host
pool
>
Field Keys¶
> show field keys
name: ballooninfo
fieldKey fieldType
-------- ---------
actual float
free_mem float
last_update float
major_page_faults float
max_mem float
mem_swapped_in float
mem_swapped_out float
minor_page_faults float
total_mem float
name: blockstat
fieldKey fieldType
-------- ---------
bavail float
bfree float
blocks float
failed_flush_operations float
failed_rd_operations float
failed_wr_operations float
favail float
ffree float
files float
flush_operations float
flush_total_time_ns float
fper float
fused float
idle_time_ns float
invalid_flush_operations float
invalid_rd_operations float
invalid_wr_operations float
per float
rd_bytes float
rd_merged float
rd_operations float
rd_total_time_ns float
su_bavail float
su_blocks float
su_favail float
su_files float
used float
user_bavail float
user_blocks float
user_favail float
user_files float
user_fused float
user_used float
wr_bytes float
wr_highest_offset float
wr_merged float
wr_operations float
wr_total_time_ns float
name: cpustat
fieldKey fieldType
-------- ---------
avg1 float
avg15 float
avg5 float
cpu float
cpus float
ctime float
idle float
iowait float
nice float
sum float
system float
used float
user float
wait float
name: memory
fieldKey fieldType
-------- ---------
memfree float
memshared float
memtotal float
memused float
swapfree float
swaptotal float
swapused float
name: nics
fieldKey fieldType
-------- ---------
netin float
netout float
receive float
transmit float
name: sensors
fieldKey fieldType
-------- ---------
fan_alarm float
fan_div float
fan_input float
fan_min float
in_input float
in_max float
in_min float
temp_alarm float
temp_crit float
temp_crit_alarm float
temp_crit_hyst float
temp_emergency float
temp_emergency_hyst float
temp_input float
temp_max float
temp_max_hyst float
temp_min float
name: smart_attribute
fieldKey fieldType
-------- ---------
exit_status integer
raw_value integer
threshold integer
value integer
worst integer
name: smart_device
fieldKey fieldType
-------- ---------
exit_status integer
health_ok boolean
read_error_rate integer
seek_error_rate integer
temp_c integer
udma_crc_errors integer
name: system
fieldKey fieldType
-------- ---------
active float
avail float
balloon float
balloon_min float
content string
cpu float
cpus float
disk float
diskread float
diskwrite float
enabled float
freemem float
lock string
maxdisk float
maxmem float
maxswap float
mem float
name string
netin float
netout float
pid float
qmpstatus string
shared float
shares float
status string
swap float
total float
type string
uptime float
used float
vmid float
name: temp
fieldKey fieldType
-------- ---------
temp float
name: zfs
fieldKey fieldType
-------- ---------
abdstats_linear_cnt integer
abdstats_linear_data_size integer
abdstats_scatter_chunk_waste integer
abdstats_scatter_cnt integer
abdstats_scatter_data_size integer
abdstats_scatter_order_0 integer
abdstats_scatter_order_1 integer
abdstats_scatter_order_10 integer
abdstats_scatter_order_2 integer
abdstats_scatter_order_3 integer
abdstats_scatter_order_4 integer
abdstats_scatter_order_5 integer
abdstats_scatter_order_6 integer
abdstats_scatter_order_7 integer
abdstats_scatter_order_8 integer
abdstats_scatter_order_9 integer
abdstats_scatter_page_alloc_retry integer
abdstats_scatter_page_multi_chunk integer
abdstats_scatter_page_multi_zone integer
abdstats_scatter_sg_table_retry integer
abdstats_struct_size integer
arcstats_access_skip integer
arcstats_anon_evictable_data integer
arcstats_anon_evictable_metadata integer
arcstats_anon_size integer
arcstats_arc_dnode_limit integer
arcstats_arc_loaned_bytes integer
arcstats_arc_meta_limit integer
arcstats_arc_meta_max integer
arcstats_arc_meta_min integer
arcstats_arc_meta_used integer
arcstats_arc_need_free integer
arcstats_arc_no_grow integer
arcstats_arc_prune integer
arcstats_arc_raw_size integer
arcstats_arc_sys_free integer
arcstats_arc_tempreserve integer
arcstats_async_upgrade_sync integer
arcstats_bonus_size integer
arcstats_c integer
arcstats_c_max integer
arcstats_c_min integer
arcstats_compressed_size integer
arcstats_data_size integer
arcstats_dbuf_size integer
arcstats_deleted integer
arcstats_demand_data_hits integer
arcstats_demand_data_misses integer
arcstats_demand_hit_predictive_prefetch integer
arcstats_demand_hit_prescient_prefetch integer
arcstats_demand_metadata_hits integer
arcstats_demand_metadata_misses integer
arcstats_dnode_size integer
arcstats_evict_l2_cached integer
arcstats_evict_l2_eligible integer
arcstats_evict_l2_ineligible integer
arcstats_evict_l2_skip integer
arcstats_evict_not_enough integer
arcstats_evict_skip integer
arcstats_hash_chain_max integer
arcstats_hash_chains integer
arcstats_hash_collisions integer
arcstats_hash_elements integer
arcstats_hash_elements_max integer
arcstats_hdr_size integer
arcstats_hits integer
arcstats_l2_abort_lowmem integer
arcstats_l2_asize integer
arcstats_l2_cksum_bad integer
arcstats_l2_evict_l1cached integer
arcstats_l2_evict_lock_retry integer
arcstats_l2_evict_reading integer
arcstats_l2_feeds integer
arcstats_l2_free_on_write integer
arcstats_l2_hdr_size integer
arcstats_l2_hits integer
arcstats_l2_io_error integer
arcstats_l2_misses integer
arcstats_l2_read_bytes integer
arcstats_l2_rw_clash integer
arcstats_l2_size integer
arcstats_l2_write_bytes integer
arcstats_l2_writes_done integer
arcstats_l2_writes_error integer
arcstats_l2_writes_lock_retry integer
arcstats_l2_writes_sent integer
arcstats_memory_all_bytes integer
arcstats_memory_available_bytes integer
arcstats_memory_direct_count integer
arcstats_memory_free_bytes integer
arcstats_memory_indirect_count integer
arcstats_memory_throttle_count integer
arcstats_metadata_size integer
arcstats_mfu_evictable_data integer
arcstats_mfu_evictable_metadata integer
arcstats_mfu_ghost_evictable_data integer
arcstats_mfu_ghost_evictable_metadata integer
arcstats_mfu_ghost_hits integer
arcstats_mfu_ghost_size integer
arcstats_mfu_hits integer
arcstats_mfu_size integer
arcstats_misses integer
arcstats_mru_evictable_data integer
arcstats_mru_evictable_metadata integer
arcstats_mru_ghost_evictable_data integer
arcstats_mru_ghost_evictable_metadata integer
arcstats_mru_ghost_hits integer
arcstats_mru_ghost_size integer
arcstats_mru_hits integer
arcstats_mru_size integer
arcstats_mutex_miss integer
arcstats_overhead_size integer
arcstats_p integer
arcstats_prefetch_data_hits integer
arcstats_prefetch_data_misses integer
arcstats_prefetch_metadata_hits integer
arcstats_prefetch_metadata_misses integer
arcstats_size integer
arcstats_uncompressed_size integer
dmu_tx_assigned integer
dmu_tx_delay integer
dmu_tx_dirty_delay integer
dmu_tx_dirty_frees_delay integer
dmu_tx_dirty_over_max integer
dmu_tx_dirty_throttle integer
dmu_tx_error integer
dmu_tx_group integer
dmu_tx_memory_reclaim integer
dmu_tx_memory_reserve integer
dmu_tx_quota integer
dmu_tx_suspended integer
dnode_alloc_next_block integer
dnode_alloc_next_chunk integer
dnode_alloc_race integer
dnode_allocate integer
dnode_buf_evict integer
dnode_free_interior_lock_retry integer
dnode_hold_alloc_hits integer
dnode_hold_alloc_interior integer
dnode_hold_alloc_lock_misses integer
dnode_hold_alloc_lock_retry integer
dnode_hold_alloc_misses integer
dnode_hold_alloc_type_none integer
dnode_hold_dbuf_hold integer
dnode_hold_dbuf_read integer
dnode_hold_free_hits integer
dnode_hold_free_lock_misses integer
dnode_hold_free_lock_retry integer
dnode_hold_free_misses integer
dnode_hold_free_overflow integer
dnode_hold_free_refcount integer
dnode_move_active integer
dnode_move_handle integer
dnode_move_invalid integer
dnode_move_recheck1 integer
dnode_move_recheck2 integer
dnode_move_rwlock integer
dnode_move_special integer
dnode_reallocate integer
fm_erpt-dropped integer
fm_erpt-set-failed integer
fm_fmri-set-failed integer
fm_payload-set-failed integer
vdev_mirror_stats_non_rotating_linear integer
vdev_mirror_stats_non_rotating_seek integer
vdev_mirror_stats_preferred_found integer
vdev_mirror_stats_preferred_not_found integer
vdev_mirror_stats_rotating_linear integer
vdev_mirror_stats_rotating_offset integer
vdev_mirror_stats_rotating_seek integer
zfetchstats_hits integer
zfetchstats_max_streams integer
zfetchstats_misses integer
zil_commit_count integer
zil_commit_writer_count integer
zil_itx_copied_bytes integer
zil_itx_copied_count integer
zil_itx_count integer
zil_itx_indirect_bytes integer
zil_itx_indirect_count integer
zil_itx_metaslab_normal_bytes integer
zil_itx_metaslab_normal_count integer
zil_itx_metaslab_slog_bytes integer
zil_itx_metaslab_slog_count integer
zil_itx_needcopy_bytes integer
zil_itx_needcopy_count integer
name: zfs_pool
fieldKey fieldType
-------- ---------
nread integer
nwritten integer
rcnt integer
reads integer
rlentime integer
rtime integer
rupdate integer
wcnt integer
wlentime integer
writes integer
wtime integer
wupdate integer
>
Telegraf¶
Series¶
> show series
key
---
smart_device,device=sda,host=masterserver
smart_device,device=sdb,host=masterserver
smart_device,device=sdc,host=masterserver
smart_device,device=sdd,host=masterserver
smart_device,device=sde,host=masterserver
temp,host=masterserver,sensor=coretemp_core0_crit
temp,host=masterserver,sensor=coretemp_core0_critalarm
temp,host=masterserver,sensor=coretemp_core0_input
temp,host=masterserver,sensor=coretemp_core0_max
temp,host=masterserver,sensor=coretemp_core1_crit
temp,host=masterserver,sensor=coretemp_core1_critalarm
temp,host=masterserver,sensor=coretemp_core1_input
temp,host=masterserver,sensor=coretemp_core1_max
temp,host=masterserver,sensor=coretemp_core2_crit
temp,host=masterserver,sensor=coretemp_core2_critalarm
temp,host=masterserver,sensor=coretemp_core2_input
temp,host=masterserver,sensor=coretemp_core2_max
temp,host=masterserver,sensor=coretemp_core3_crit
temp,host=masterserver,sensor=coretemp_core3_critalarm
temp,host=masterserver,sensor=coretemp_core3_input
temp,host=masterserver,sensor=coretemp_core3_max
>
Measurements¶
> show measurements
name: measurements
name
----
smart_device
temp
>
Tag Keys¶
> show tag keys
name: smart_device
tagKey
------
device
host
name: temp
tagKey
------
host
sensor
>
